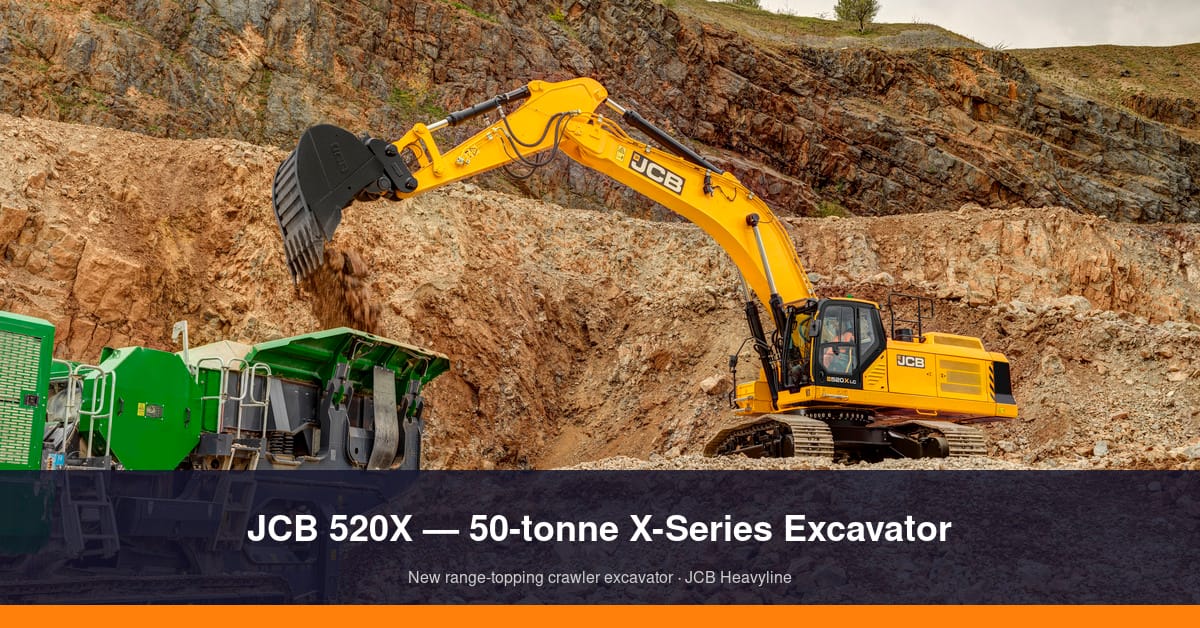

Hillhead 2026, Buxton, UK — JCB is stepping into new territory. The British manufacturer has unveiled the 520X, its largest and most powerful X-Series crawler excavator to date, slotting into the 50-tonne class — a segment JCB has never seriously contested before.
The 520X completes the Heavyline excavator range alongside the existing 370X and the newly updated 420X, giving JCB a three-model line-up covering the high-production core of the market. It will make its public debut at Hillhead 2026 on 23–25 June.
Powertrain and Performance
At the heart of the 520X sits a Cummins X12, a 11.8-litre six-cylinder engine delivering 298 kW (400 hp) at 1,800 rpm and 1,969 Nm of torque at 1,400 rpm. The engine meets Stage V emissions requirements without the need for EGR, keeping heat rejection low in demanding applications like mass excavation and crusher loading.
The hydraulic system uses twin variable-displacement axial piston pumps, each rated at 404 l/min, feeding a dual slew motor arrangement that maintains competitive cycle times even in heavy digging. A hydraulically driven cooling fan — automatically reversing for radiator cleaning — helps keep fuel consumption in check. Larger-diameter pipework throughout the circuit reduces hydraulic losses under sustained load.
Digging forces are substantial: up to 279 kN at the dipper and 318 kN at the bucket. Operating weight ranges from 52 to 57 tonnes depending on configuration.
Boom, Arm, and Undercarriage Options
Customers can choose between two front-end setups. The 6.5 m mass excavation boom is optimised for high-output digging and loading, paired with a 2.55 m or 3.0 m heavy-duty arm. The 6.9 m reach boom offers more versatility, with 3.0 m or 3.3 m arm options, delivering a maximum reach of 11.8 m and digging depth of 7.8 m.
Bucket capacities span 2.8 to 3.4 m³. Dump height reaches 7.5 m — sufficient for loading tall-bodied quarry trucks.
Two undercarriage configurations are available: a fixed 2,740 mm track gauge or a mechanically adjustable variable gauge ranging from 2,390 mm to 2,890 mm. Track pad widths range from 600 mm to 900 mm to suit different ground conditions. Counterweight options include a fixed 10.5-tonne unit or a hydraulically removable 9.8-tonne version for transport efficiency.
An optional Heavy-Duty Pro Pack adds side impact plates, belly plates, bucket ram guards, and protective cages for the working lights — aimed at operators in demolition and quarry environments.
CommandPlus Cab and User Interface
The 520X comes with JCB's CommandPlus cab, ROPS certified as standard. The interior features a heated and ventilated seat with electric lumbar adjustment, keyless start, and the JCB UX 10-inch touchscreen interface.
Up to 25 operator profiles can be stored — covering joystick sensitivity, switch preferences, and display layout — making multi-operator fleets easier to manage. A high-definition 360-degree camera is standard, integrated into the UX display for blind-spot views around the machine. Fourteen LED working lights are fitted as standard, with guards optional for harsh environments.
The 2-Go hydraulic isolation system, activated from the cab, prevents accidental machine movement during service access.
Telematics and Service
Every 520X ships with JCB LiveLink telematics as standard. The platform provides remote monitoring of fuel consumption, idle time, service intervals, and geolocation — essential for fleet managers running multiple machines across dispersed sites. The system alerts operators to maintenance requirements before they become breakdowns.
Significance
With the 520X, JCB signals that it is serious about the upper end of the tracked excavator market. The Heavyline series — 370X, 420X, and now 520X — gives the company a credible, modern platform in one of the construction industry's most competitive equipment classes. Hillhead 2026 will be the first opportunity to see whether the 520X can hold its own against established 50-tonne contenders from Caterpillar, Komatsu, Hitachi, and Volvo.
