Volvo CE is making a serious play in the smaller rigid truck segment — and the timing might be perfect.

For years, the rigid hauler market between 50 and 110 tons was dominated by a handful of players. Caterpillar's 777 and 775, Komatsu's HD785 and HD685 — those were the names operators knew. Liebherr and Hitachi have both withdrawn from this weight class in recent years, leaving room for a determined challenger. Volvo CE, with its three-model rigid hauler lineup built in Motherwell, Scotland, is stepping into that gap with what it calls a "right-sized" philosophy — matching truck capacity precisely to excavator and loader bucket sizes for maximum productivity.

The Trio: R60, R70, R100

At the entry end sits the R60, a 55-tonne (61 US ton) machine powered by a Cummins QSK19 delivering 760 hp. With a 47 yd³ (36 m³) V-shaped body, it's designed to work in tandem with Volvo's EC950 crawler excavator or L350H wheel loader — no wasted passes, no underloading. Body volume is matched to bucket capacity so operators hit the payload target in three to five cycles, every time.

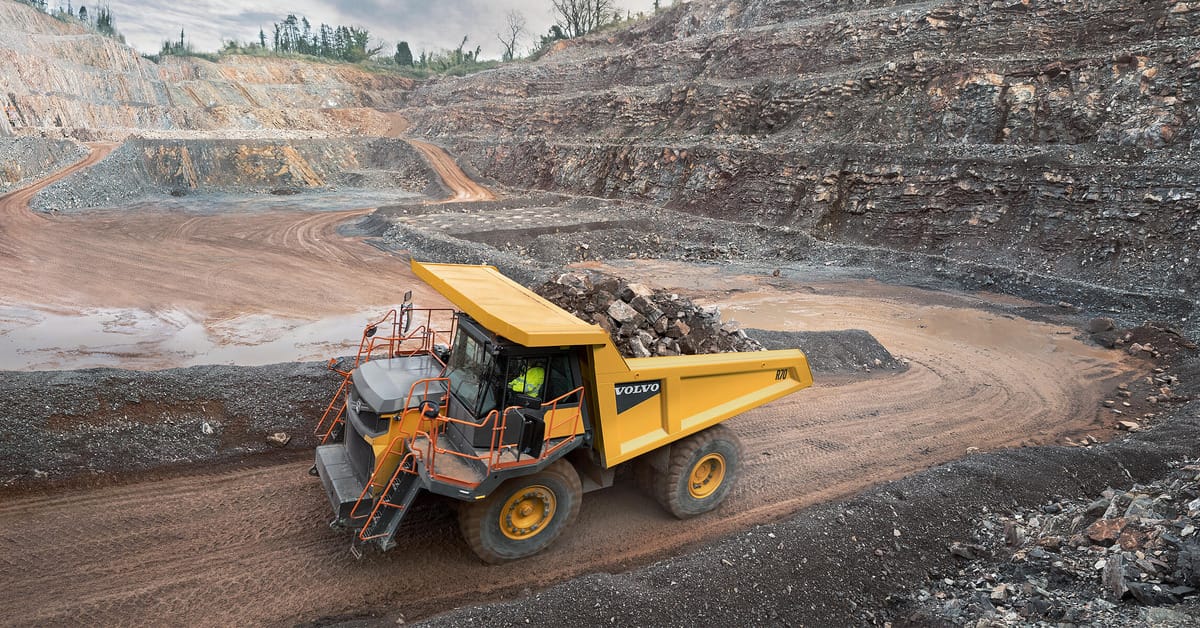

One step up, the R70 pushes payload to 65 tonnes (70 US tons) with the same Cummins QSK19 engine but a larger 55.6 yd³ (42.5 m³) body. Volvo positions this as the North American sweet spot — a machine big enough for serious quarry and mine production but compact enough to stay legal on site roads without the permitting headaches of larger trucks. Both the R60 and R70 made their show debuts at CONEXPO-CON/AGG 2026 in Las Vegas.

The volume leader is the R100, rated at 95 tonnes (105 US tons) with a 79 yd³ (60.4 m³) body. First launched in 2018 for less-regulated markets, it was re-released globally after being fitted with a Stage V / Tier 4 Final-compliant Cummins QST30 producing 1,075 hp. That emissions certification unlocked Europe and North America — two markets where Volvo's dealer network gives it a built-in advantage.

Built for the Job Site, Not Just the Spec Sheet

Volvo's design philosophy for these trucks rests on three pillars: safety, productivity, and total cost of ownership.

Safety is front and centre. The cabs are ROPS/FOPS certified with anti-slip entry steps on both sides, a large windscreen with a low raked dashboard, and an optional Volvo Smart View system giving the operator a 360° bird's-eye view. Overspeed protection, a neutral coast inhibitor, and fail-safe braking are standard — not optional extras.

Productivity comes from the drivetrain and body design. The V-shaped haul body, lined with HARDOX wear plates in high-impact areas, minimizes carry-back and improves load retention. An optional on-board weighing system supports Volvo's 10/10/20 payload policy — allowing 10% overload for 10% of operating time, never exceeding 20% — which lets operators push the trucks closer to their limits without risking structural damage.

Cost of ownership is addressed through 500-hour service intervals, grouped maintenance points accessible from ground level or a service platform, and common-sized bearings across the lineup that simplify parts stocking. Volvo also bundles its CareTrack telematics and Site Simulation service to help operators optimize fleet mix and haul road design.

Competitive Position

Against the Cat 777 (100-ton class) and Komatsu HD785-8 (101.6 US tons), the R100 is a direct competitor on spec. The R60 and R70, however, occupy a spot where Cat and Komatsu have thinner coverage — the 55-70 ton range where ADTs used to dominate but rigid trucks offer higher speed on long, well-maintained haul roads.

Volvo's strategic bet is that the smaller rigid truck is under-served. With the closure of its own Rokbak articulated hauler division announced in March 2026 — citing rising operational costs and US tariff pressures — Volvo CE is consolidating its Motherwell facility to focus entirely on rigid hauler development. That's a clear signal that management sees more runway in rigids than ADTs for the coming decade.

Real-World Users

The lineup is already earning its keep globally. PT Hasnur Riung Sinergi runs R100s in Indonesian coal operations, Saudi Comedat deploys them in Middle Eastern quarry work, Amrize is using R70s in US mining, and First Quantum Minerals operates Volvo rigid haulers at its Zambian copper sites. These aren't showcase machines — they're earning their keep in tough environments from Southeast Asia to the Sahara.

Volvo CE may not lead the rigid truck market by volume, but it has assembled the most coherent three-model lineup in the 55-105 ton class — and with a Scottish factory now dedicated solely to rigid haulers, the next generation is already on the drawing board.
